R Drive Hub
- Part Number: 10082217
- Part Terminology: Wheel Hub
- Brand Code: BXXV
- Line No: CMT
Description

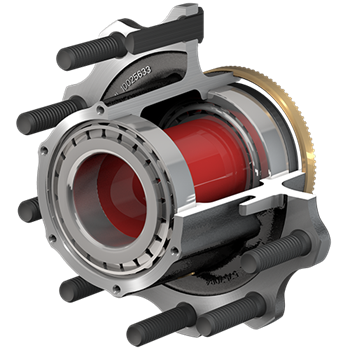

ConMet PreSet and PreSet Plus hub assemblies are the most advanced OEM-approved wheel hubs on the market and come fully assembled and ready for quick installation. PreSet and PreSet Plus hubs are available in both lightweight aluminum and lower-cost ductile iron for both drum brake and air-disc brake configurations. A patented, integrated spindle nut system upgrades the PreSet hub to the PreSet Plus, significantly improving wheel end clamp load while making installation easier, aiding in the removal of the hub, and providing improved safety. PreSet hubs feature a 3 year/350,000 -mile warranty, while PreSet Plus hubs carry a 5 year/500,000-mile warranty.Product Specification
| Material | Aluminum |
|---|---|
| Axle Position | Drive |
| Axle | R |
| Brake Type | Drum |
| Hub Mounting System | HP10 |
| Wheel Stud Standout | 3.81 |
| Hub Rating | 11500 |
| Flange Offset | 1.31 |
| Weight | 51.0 |
| Wheel Stud Thread | M22 X 1.5 mm |
| Axle Stud Thread | 5/8-18 UNC - R.H. |
| Wheel Stud Bolt Circle Diameter | 11.25 |
| Bearing Number Inboard - 246 | 429 |
| Bearing Number Outboard - 245 | 430 |
Interchange
| Brand | Interchange |
|---|---|
| AUTMN | 150.D4101.S1 |
| FRGHT | CM 10082217 |
| MACKX | 7413-10082217 |
| MACKX | 85150208 |
| NVSTR | CNM10082217 |
| PACCR | CM10082217 |
| PFTRK | CON-10082217 |
| TRUCK | CO10082217 |
| VLVNA | 85150208 |
| VLVNA | CM 10082217 |
Literature
Literature coming soon
R Drive Hub
- Part Number: 10082218
- Part Terminology: Wheel Hub
- Brand Code: BXXV
- Line No: CMT
Description

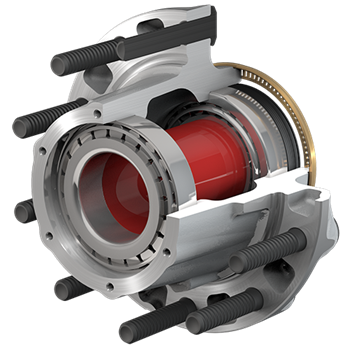

ConMet PreSet and PreSet Plus hub assemblies are the most advanced OEM-approved wheel hubs on the market and come fully assembled and ready for quick installation. PreSet and PreSet Plus hubs are available in both lightweight aluminum and lower-cost ductile iron for both drum brake and air-disc brake configurations. A patented, integrated spindle nut system upgrades the PreSet hub to the PreSet Plus, significantly improving wheel end clamp load while making installation easier, aiding in the removal of the hub, and providing improved safety. PreSet hubs feature a 3 year/350,000 -mile warranty, while PreSet Plus hubs carry a 5 year/500,000-mile warranty.Product Specification
| Material | Iron |
|---|---|
| Axle Position | Drive |
| Axle | R |
| Brake Type | Drum |
| Hub Mounting System | HP10 |
| Wheel Stud Standout | 3.06 |
| Hub Rating | 13000 |
| Flange Offset | 1.31 |
| Weight | 61.7 |
| Wheel Stud Thread | M22 X 1.5 mm |
| Axle Stud Thread | 5/8-18 UNC - R.H. |
| Wheel Stud Bolt Circle Diameter | 11.25 |
| Bearing Number Inboard - 246 | 429 |
| Bearing Number Outboard - 245 | 430 |
Interchange
| Brand | Interchange |
|---|---|
| FRGHT | CM 10082218 |
| MACKX | 7413-10082218 |
| MACKX | 85150209 |
| MDWWH | C5 10082218 |
| NVSTR | CNM10082218 |
| PACCR | CM10082218 |
| PFTRK | CON-10082218 |
| TRUCK | CO10082218 |
| VLVNA | 85150209 |
| VLVNA | CM 10082218 |
Literature
Literature coming soon
R Drive Hub
- Part Number: 10082219
- Part Terminology: Wheel Hub
- Brand Code: BXXV
- Line No: CMT
Description

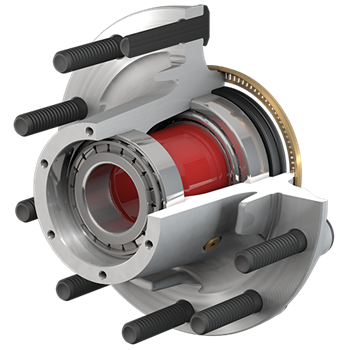

ConMet PreSet and PreSet Plus hub assemblies are the most advanced OEM-approved wheel hubs on the market and come fully assembled and ready for quick installation. PreSet and PreSet Plus hubs are available in both lightweight aluminum and lower-cost ductile iron for both drum brake and air-disc brake configurations. A patented, integrated spindle nut system upgrades the PreSet hub to the PreSet Plus, significantly improving wheel end clamp load while making installation easier, aiding in the removal of the hub, and providing improved safety. PreSet hubs feature a 3 year/350,000 -mile warranty, while PreSet Plus hubs carry a 5 year/500,000-mile warranty.Product Specification
| Material | Iron |
|---|---|
| Axle Position | Drive |
| Axle | R |
| Brake Type | Drum |
| Hub Mounting System | HP10 |
| Wheel Stud Standout | 3.97 |
| Hub Rating | 13000 |
| Flange Offset | 1.31 |
| Weight | 63.1 |
| Wheel Stud Thread | M22 X 1.5 mm |
| Axle Stud Thread | 5/8-18 UNC - R.H. |
| Wheel Stud Bolt Circle Diameter | 11.25 |
| Bearing Number Inboard - 246 | 429 |
| Bearing Number Outboard - 245 | 430 |
Interchange
| Brand | Interchange |
|---|---|
| CRANE | 1000-8700 |
| FRGHT | CM 10082219 |
| MACKX | 7413-10082219 |
| MACKX | 85150210 |
| NVSTR | CNM10082219 |
| PACCR | CM10082219 |
| PFTRK | CON-10082219 |
| TRUCK | CO10082219 |
| VLVNA | 85150210 |
| VLVNA | CM 10082219 |
Literature
Literature coming soon
R Drive Hub
- Part Number: 10082221
- Part Terminology: Wheel Hub
- Brand Code: BXXV
- Line No: CMT
Description
ConMet PreSet and PreSet Plus hub assemblies are the most advanced OEM-approved wheel hubs on the market and come fully assembled and ready for quick installation. PreSet and PreSet Plus hubs are available in both lightweight aluminum and lower-cost ductile iron for both drum brake and air-disc brake configurations. A patented, integrated spindle nut system upgrades the PreSet hub to the PreSet Plus, significantly improving wheel end clamp load while making installation easier, aiding in the removal of the hub, and providing improved safety. PreSet hubs feature a 3 year/350,000 -mile warranty, while PreSet Plus hubs carry a 5 year/500,000-mile warranty.Product Specification
| Hub Mounting System | HP10 |
|---|---|
| Wheel Stud Standout | 3.81 |
| Hub Rating | 11500 |
| Flange Offset | 1.31 |
| Weight | 50.7 |
| Wheel Stud Thread | M22 X 1.5 mm |
| Axle Stud Thread | 3/4-10 UNC - R.H. |
| Wheel Stud Bolt Circle Diameter | 11.25 |
| Bearing Number Inboard - 246 | 429 |
| Bearing Number Outboard - 245 | 430 |
| Material | Aluminum |
| Axle Position | Drive |
| Axle | R |
| Brake Type | Drum |
Interchange
| Brand | Interchange |
|---|---|
| AUTMN | 150.D4102.S1 |
| FRGHT | CM 10082221 |
| MACKX | 7413-10082221 |
| MACKX | 85150212 |
| NVSTR | CNM10082221 |
| PACCR | CM10082221 |
| PFTRK | CON-10082221 |
| TRUCK | CO10082221 |
| VLVNA | 85150212 |
| VLVNA | CM 10082221 |
Literature
Literature coming soon
TN Trailer Hub
- Part Number: 10082225
- Part Terminology: Wheel Hub
- Brand Code: BXXV
- Line No: CMT
Description

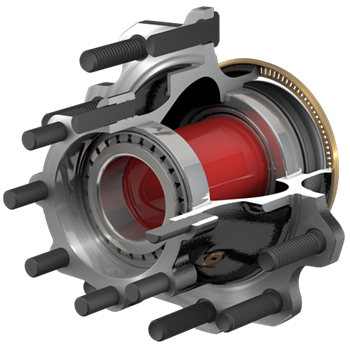

ConMet PreSet and PreSet Plus hub assemblies are the most advanced OEM-approved wheel hubs on the market and come fully assembled and ready for quick installation. PreSet and PreSet Plus hubs are available in both lightweight aluminum and lower-cost ductile iron for both drum brake and air-disc brake configurations. A patented, integrated spindle nut system upgrades the PreSet hub to the PreSet Plus, significantly improving wheel end clamp load while making installation easier, aiding in the removal of the hub, and providing improved safety. PreSet hubs feature a 3 year/350,000 -mile warranty, while PreSet Plus hubs carry a 5 year/500,000-mile warranty.Product Specification
| Axle | TN |
|---|---|
| Brake Type | Drum |
| Hub Mounting System | HP10 |
| Wheel Stud Standout | 3.8 |
| Hub Rating | 11500 |
| Flange Offset | 0.34 |
| Weight | 43.8 |
| Wheel Stud Thread | M22 X 1.5 mm |
| Wheel Stud Bolt Circle Diameter | 11.25 |
| Bearing Number Inboard - 246 | 431 |
| Bearing Number Outboard - 245 | 427 |
| Material | Aluminum |
| Axle Position | Trailer |
Interchange
| Brand | Interchange |
|---|---|
| AUTMN | 150.T4101.S1 |
| CRSTR | CON-10082225 |
| EASTX | 521-15751-03 |
| FRGHT | CM 10082225 |
| GRTDN | CON10082225 |
| NVSTR | CNM10082225 |
| PACCR | 10080993 |
| PACCR | 453-0243 |
| PACCR | CM10082225 |
| PFTRK | CON-10082225 |
| PFTRK | STE-453-0243 |
| STMCO | 453-0243 |
| TRUCK | CO10082225 |
| VLVNA | CM 10082225 |
Literature
Literature coming soon
TN Trailer Hub
- Part Number: 10082227
- Part Terminology: Wheel Hub
- Brand Code: BXXV
- Line No: CMT
Description
ConMet PreSet and PreSet Plus hub assemblies are the most advanced OEM-approved wheel hubs on the market and come fully assembled and ready for quick installation. PreSet and PreSet Plus hubs are available in both lightweight aluminum and lower-cost ductile iron for both drum brake and air-disc brake configurations. A patented, integrated spindle nut system upgrades the PreSet hub to the PreSet Plus, significantly improving wheel end clamp load while making installation easier, aiding in the removal of the hub, and providing improved safety. PreSet hubs feature a 3 year/350,000 -mile warranty, while PreSet Plus hubs carry a 5 year/500,000-mile warranty.Product Specification
| Material | Iron |
|---|---|
| Axle Position | Trailer |
| Axle | TN |
| Brake Type | Drum |
| Hub Mounting System | HP10 |
| Wheel Stud Standout | 4.08 |
| Hub Rating | 11500 |
| Flange Offset | 0.28 |
| Weight | 53.9 |
| Wheel Stud Thread | M22 X 1.5 mm |
| Wheel Stud Bolt Circle Diameter | 11.25 |
| Bearing Number Inboard - 246 | 431 |
| Bearing Number Outboard - 245 | 427 |
Interchange
| Brand | Interchange |
|---|---|
| BRKNR | 7843-4530243 |
| CRSTR | CON-10082227 |
| FRGHT | CM 10082227 |
| MACKX | 7413-10082227 |
| MDWWH | C5 10082227 |
| PACCR | 453-0243 |
| PACCR | CM10082227 |
| PFTRK | CON-10082227 |
| PFTRK | STE-453-0243 |
| STMCO | 453-0243 |
| TRUCK | CO10082227 |
Literature
Literature coming soon
TP Trailer Hub
- Part Number: 10082229
- Part Terminology: Wheel Hub
- Brand Code: BXXV
- Line No: CMT
Description

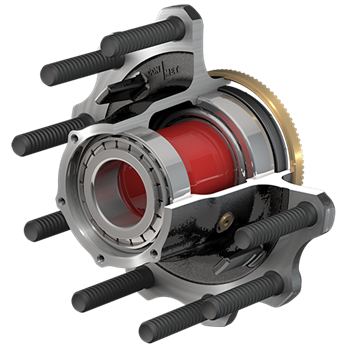

ConMet PreSet and PreSet Plus hub assemblies are the most advanced OEM-approved wheel hubs on the market and come fully assembled and ready for quick installation. PreSet and PreSet Plus hubs are available in both lightweight aluminum and lower-cost ductile iron for both drum brake and air-disc brake configurations. A patented, integrated spindle nut system upgrades the PreSet hub to the PreSet Plus, significantly improving wheel end clamp load while making installation easier, aiding in the removal of the hub, and providing improved safety. PreSet hubs feature a 3 year/350,000 -mile warranty, while PreSet Plus hubs carry a 5 year/500,000-mile warranty.Product Specification
| Material | Aluminum |
|---|---|
| Axle Position | Trailer |
| Axle | TP |
| Brake Type | Drum |
| Hub Mounting System | HP10 |
| Wheel Stud Standout | 3.81 |
| Hub Rating | 12500 |
| Flange Offset | 1.42 |
| Weight | 49.8 |
| Wheel Stud Thread | M22 X 1.5 mm |
| Wheel Stud Bolt Circle Diameter | 11.25 |
| Bearing Number Inboard - 246 | 432 |
| Bearing Number Outboard - 245 | 432 |
Interchange
| Brand | Interchange |
|---|---|
| AUTMN | 150.T4202.S1 |
| FRGHT | CM 10082229 |
| GRTDN | CON10082229 |
| MDWWH | C5 10082229 |
| PACCR | 453-0223 |
| PACCR | CM10082229 |
| PFTRK | CON-10082229 |
| PFTRK | STE-453-0223 |
| STMCO | 453 0223 |
| TRUCK | CO10082229 |
| VLVNA | CM 10082229 |
Literature
Literature coming soon
TP Trailer Hub
- Part Number: 10082231
- Part Terminology: Wheel Hub
- Brand Code: BXXV
- Line No: CMT
Description
ConMet PreSet and PreSet Plus hub assemblies are the most advanced OEM-approved wheel hubs on the market and come fully assembled and ready for quick installation. PreSet and PreSet Plus hubs are available in both lightweight aluminum and lower-cost ductile iron for both drum brake and air-disc brake configurations. A patented, integrated spindle nut system upgrades the PreSet hub to the PreSet Plus, significantly improving wheel end clamp load while making installation easier, aiding in the removal of the hub, and providing improved safety. PreSet hubs feature a 3 year/350,000 -mile warranty, while PreSet Plus hubs carry a 5 year/500,000-mile warranty.Product Specification
| Material | Iron |
|---|---|
| Axle Position | Trailer |
| Axle | TP |
| Brake Type | Drum |
| Hub Mounting System | HP10 |
| Wheel Stud Standout | 4.08 |
| Hub Rating | 12500 |
| Flange Offset | 1.35 |
| Weight | 62.9 |
| Wheel Stud Thread | M22 X 1.5 mm |
| Wheel Stud Bolt Circle Diameter | 11.25 |
| Bearing Number Inboard - 246 | 432 |
| Bearing Number Outboard - 245 | 432 |
Interchange
| Brand | Interchange |
|---|---|
| CRSTR | CON-10082231 |
| FRGHT | CM 10082231 |
| MACKX | 7413-10082231 |
| PACCR | 453-0223 |
| PACCR | CM10082231 |
| PFTRK | CON-10082231 |
| PFTRK | STE-453-0223 |
| STMCO | 453 0223 |
| TRUCK | CO10082231 |
Literature
Literature coming soon
TN Trailer Hub
- Part Number: 10082250
- Part Terminology: Wheel Hub
- Brand Code: BXXV
- Line No: CMT
Description

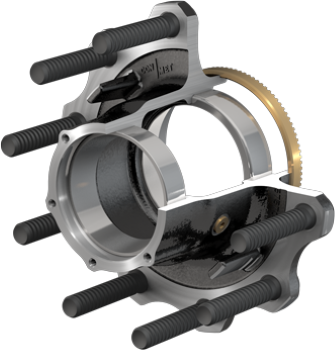

ConMet conventional hubs are made of cost-effective iron or lightweight aluminum and come with bearing cups, studs, ABS Ring, and fill plug installed. Conventional hubs require the additional purchase of a wheel seal and matched bearing cone. Once the hub is assembled, the bearings must be manually adjusted for proper end play, and the locking system secured in place. ConMet conventional hubs feature a 1 year/100,000-mile warranty.Product Specification
| Material | Aluminum |
|---|---|
| Axle Position | Trailer |
| Axle | TN |
| Brake Type | Drum |
| Hub Mounting System | HP10 |
| Wheel Stud Standout | 3.8 |
| Hub Rating | 11500 |
| Flange Offset | 0.34 |
| Weight | 34.2 |
| Wheel Stud Thread | M22 X 1.5 mm |
| Wheel Stud Bolt Circle Diameter | 11.25 |
| Bearing Number Inboard - 246 | HM218210 |
| Bearing Number Outboard - 245 | HM212011 |
Interchange
| Brand | Interchange |
|---|---|
| FRGHT | CM 10082250 |
| NVSTR | CNM10082250 |
| PACCR | CM10082250 |
| PFTRK | CON-10082250 |
| TRUCK | CO10082250 |
| VLVNA | CM 10082250 |
Literature
Literature coming soon
TN Trailer Hub
- Part Number: 10082252
- Part Terminology: Wheel Hub
- Brand Code: BXXV
- Line No: CMT
Description
ConMet conventional hubs are made of cost-effective iron or lightweight aluminum and come with bearing cups, studs, ABS Ring, and fill plug installed. Conventional hubs require the additional purchase of a wheel seal and matched bearing cone. Once the hub is assembled, the bearings must be manually adjusted for proper end play, and the locking system secured in place. ConMet conventional hubs feature a 1 year/100,000-mile warranty.Product Specification
| Material | Iron |
|---|---|
| Axle Position | Trailer |
| Axle | TN |
| Brake Type | Drum |
| Hub Mounting System | HP10 |
| Wheel Stud Standout | 4.08 |
| Hub Rating | 11500 |
| Flange Offset | 0.28 |
| Weight | 43.8 |
| Wheel Stud Thread | M22 X 1.5 mm |
| Wheel Stud Bolt Circle Diameter | 11.25 |
| Bearing Number Inboard - 246 | HM218210 |
| Bearing Number Outboard - 245 | HM212011 |
Interchange
| Brand | Interchange |
|---|---|
| FRGHT | CM 10082252 |
| NVSTR | CNM10082252 |
| PACCR | CM10082252 |
| PFTRK | CON-10082252 |
| VLVNA | CM 10082252 |
Literature
Literature coming soon
