RAIL BOTTOM
- Part Number: 10060538-11
- Part Terminology: RAIL BOTTOM
- Brand Code: JHXP
- Line No: NLF
Description
RAIL BOTTOM | 10060538-11_JHXPProduct Specification
No data found.
Interchange
No data found.
Literature
Literature coming soon

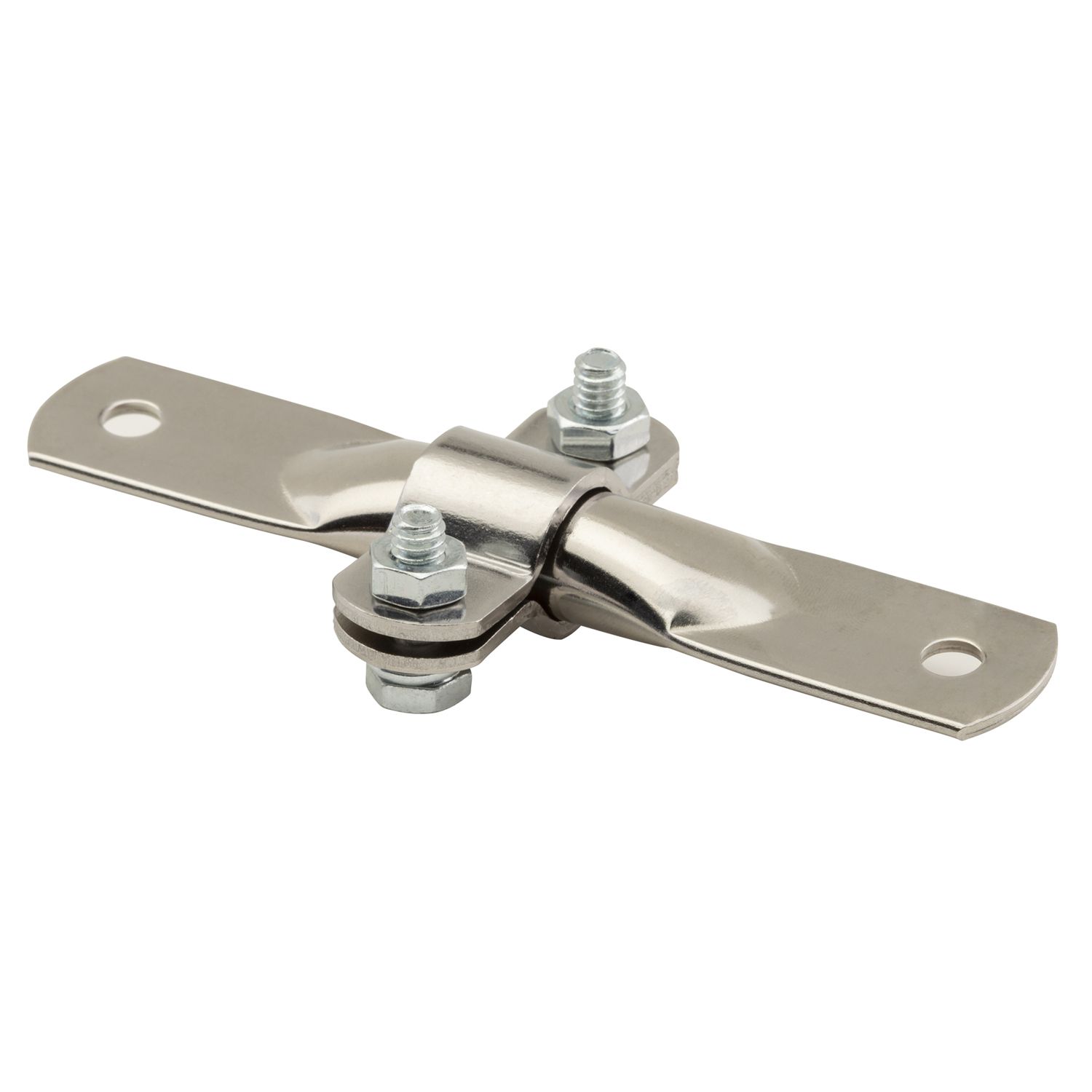

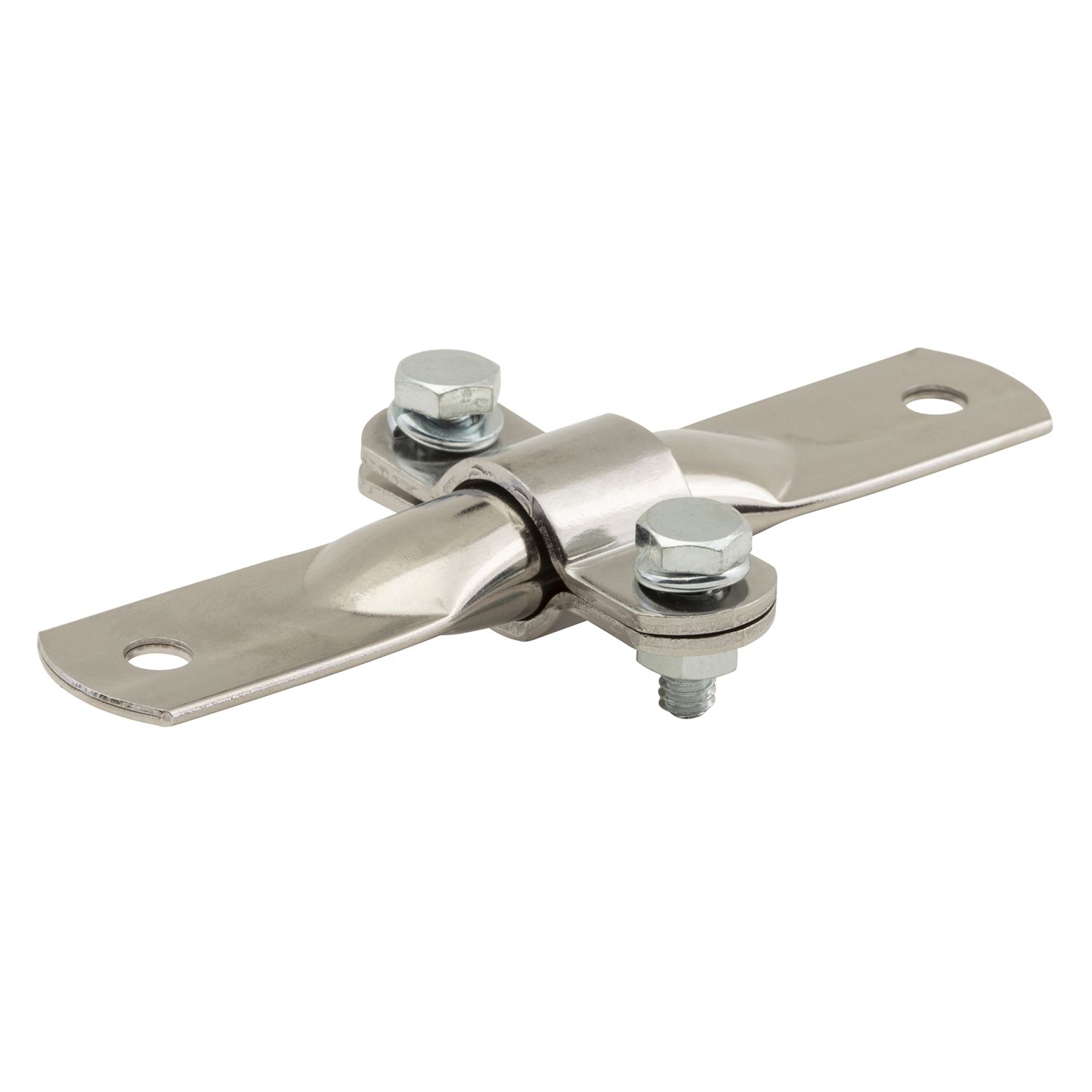

Extension Arm & Clamp Assembly For Stack Mirrors, Stainless Steel
- Part Number: 10073
- Part Terminology: Door Mirror Bracket
- Brand Code: BBTF
- Line No: GRO
Description
Grote Industries is a global leader in the development, manufacture, and supply of innovative visibility and safety systems for the on-highway, off-highway, and trailer body builder markets. Grote’s heavy-duty lighting and safety products are designed to work when needed — rain or shine, day or night, wet or dry — no excuses. Grote products include a full range of vehicle lighting, electrical, and reflective systems, and the accessories necessary to support their long-life performance. Built to withstand the vibration, corrosion, moisture, and dust of the most punishing environments, Grote’s products feature high-strength materials and rugged, durable construction to help ensure your equipment gets the job done. Family owned since 1901, the company is headquartered in Madison, Indiana, and serves international customers with locations in Canada, Mexico, Europe, and Asia. Attaches securely to mirror arm for extended length.Product Specification
| Material | Stainless Steel |
|---|---|
| Color | Stainless Steel |
| Finish | Stainless |
| Length | 6.7 x 2.9 x 0.4 in. |
Interchange
No data found.
Literature
Literature coming soon

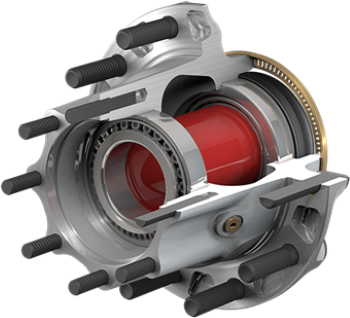

R Drive Hub
- Part Number: 1008-2217
- Part Terminology: Wheel Hub
- Brand Code: BXXV
- Line No: CMT
Description
ConMet PreSet and PreSet Plus hub assemblies are the most advanced OEM-approved wheel hubs on the market and come fully assembled and ready for quick installation. PreSet and PreSet Plus hubs are available in both lightweight aluminum and lower-cost ductile iron for both drum brake and air-disc brake configurations. A patented, integrated spindle nut system upgrades the PreSet hub to the PreSet Plus, significantly improving wheel end clamp load while making installation easier, aiding in the removal of the hub, and providing improved safety. PreSet hubs feature a 3 year/350,000 -mile warranty, while PreSet Plus hubs carry a 5 year/500,000-mile warranty.Product Specification
| Material | Aluminum |
|---|---|
| Axle Position | Drive |
| Axle | R |
| Brake Type | Drum |
| Hub Mounting System | HP10 |
| Wheel Stud Standout | 3.81 |
| Hub Rating | 11500 |
| Flange Offset | 1.31 |
| Weight | 51.0 |
| Wheel Stud Thread | M22 X 1.5 mm |
| Axle Stud Thread | 5/8-18 UNC - R.H. |
| Wheel Stud Bolt Circle Diameter | 11.25 |
| Bearing Number Inboard - 246 | 429 |
| Bearing Number Outboard - 245 | 430 |
Interchange
| Brand | Interchange |
|---|---|
| AUTMN | 150.D4101.S1 |
| FRGHT | CM 10082217 |
| MACKX | 7413-10082217 |
| MACKX | 85150208 |
| NVSTR | CNM10082217 |
| PACCR | CM10082217 |
| PFTRK | CON-10082217 |
| TRUCK | CO10082217 |
| VLVNA | 85150208 |
| VLVNA | CM 10082217 |
Literature
Literature coming soon

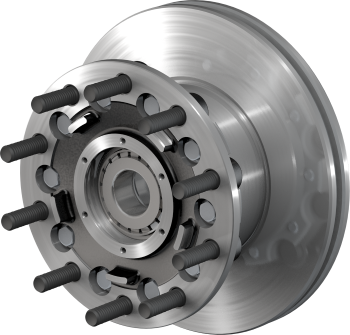

FL Front Hub/Rotor
- Part Number: 1008.3222
- Part Terminology: Disc Brake Rotor and Hub Assembly
- Brand Code: BXXV
- Line No: CMT
Description
ConMet PreSet and PreSet Plus hub assemblies are the most advanced OEM-approved wheel hubs on the market and come fully assembled and ready for quick installation. PreSet and PreSet Plus hubs are available in both lightweight aluminum and lower-cost ductile iron for both drum brake and air-disc brake configurations. A patented, integrated spindle nut system upgrades the PreSet hub to the PreSet Plus, significantly improving wheel end clamp load while making installation easier, aiding in the removal of the hub, and providing improved safety. PreSet hubs feature a 3 year/350,000 -mile warranty, while PreSet Plus hubs carry a 5 year/500,000-mile warranty.Product Specification
| Material | Iron |
|---|---|
| Axle Position | Front |
| Axle | FL |
| Brake Type | Disc |
| Hub Mounting System | HP10 |
| Wheel Stud Standout | 2.56 |
| Hub Rating | 11500 |
| Flange Offset | 5.09 |
| Weight | 157.0 |
| Wheel Stud Thread | M22 X 1.5 mm |
| Wheel Stud Bolt Circle Diameter | 11.25 |
| Bearing Number Inboard - 246 | 445 |
| Bearing Number Outboard - 245 | 446 |
Interchange
| Brand | Interchange |
|---|---|
| FRGHT | CM 10083222 |
| MACKX | 7413-10083222 |
| PACCR | CM10083222 |
| VLVNA | CM 10083222 |
Literature
Literature coming soon
W/BRKT SQ LEG 90 DEG
- Part Number: 10081306
- Part Terminology: W/BRKT SQ LEG 90 DEG
- Brand Code: KDLC
- Line No: BUFR
Description
W/BRKT SQ LEG 90 DEG | 10081306_KDLCProduct Specification
No data found.
Interchange
No data found.
Literature
Literature coming soon
Seal and Spacer Kit
- Part Number: 10081518
- Part Terminology: Wheel Hub Seal Kit
- Brand Code: BXXV
- Line No: CMT
Description
SEAL | CMTProduct Specification
| Axle Position | Front |
|---|---|
| Axle | FF |
| Weight | 2.5 |
Interchange
| Brand | Interchange |
|---|---|
| FRGHT | CM 10081518 |
| JACKO | 10081518 |
| MACKX | 7413-10081518 |
| MDWWH | C5 10081518 |
| NVSTR | CNM10081518 |
| PFTRK | CON-10081518 |
| TRUCK | CO10081518 |
| VLVNA | CM 10081518 |
Literature
Literature coming soon
Seal and Spacer Kit
- Part Number: 10081519
- Part Terminology: Wheel Hub Seal Kit
- Brand Code: BXXV
- Line No: CMT
Description
SEAL | CMTProduct Specification
| Axle Position | Front |
|---|---|
| Axle | FL |
| Weight | 3.2 |
Interchange
| Brand | Interchange |
|---|---|
| CRANE | 999-0188 |
| PFTRK | CON-10081519 |
| TRUCK | CO10081519 |
| VLVNA | CM 10081519 |
Literature
Literature coming soon
Seal and Spacer Kit
- Part Number: 10081521
- Part Terminology: Wheel Hub Seal Kit
- Brand Code: BXXV
- Line No: CMT
Description
SEAL | CMTProduct Specification
| Axle Position | Trailer |
|---|---|
| Axle | TN |
| Weight | 3.6 |
Interchange
| Brand | Interchange |
|---|---|
| AUTMN | 182.104144 |
| AUTMN | 182.81521 |
| FRGHT | CM10081521 |
| GRTDN | CON10081521 |
| MDWWH | C5 10081521 |
| NVSTR | CNM10081521 |
| PFTRK | CON-10081521 |
| TRUCK | CO10081521 |
Literature
Literature coming soon
Seal and Spacer Kit
- Part Number: 10081522
- Part Terminology: Wheel Hub Seal Kit
- Brand Code: BXXV
- Line No: CMT
Description
SEAL | CMTProduct Specification
| Weight | 3.3 |
|---|---|
| Axle Position | Trailer |
| Axle | TP |
Interchange
| Brand | Interchange |
|---|---|
| CRSTR | CON-10081522 |
| MACKX | 7413-10081522 |
| MDWWH | C5 10081522 |
| PFTRK | CON-10081522 |
| TRUCK | CO10081522 |
| VLVNA | CM 10081522 |
Literature
Literature coming soon

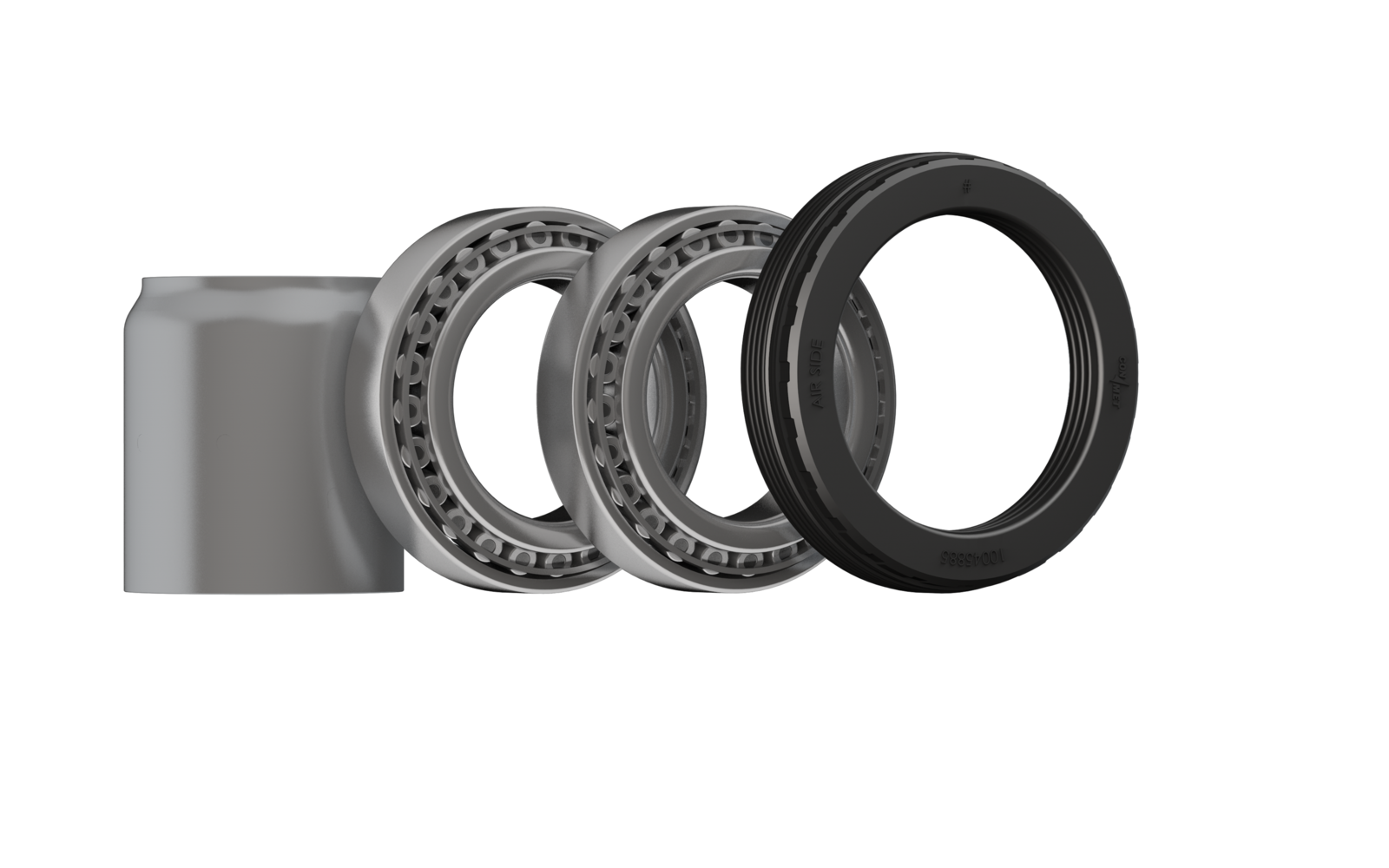

Hub Service Kit
- Part Number: 10081727
- Part Terminology: Wheel Bearing and Seal Kit
- Brand Code: BXXV
- Line No: CMT
Description
HUB REBUILD KIT | CMTProduct Specification
| Weight | 9.2 |
|---|
Interchange
| Brand | Interchange |
|---|---|
| NVSTR | CNM10081727 |
| PFTRK | CON-10081727 |
| TRUCK | CO10081727 |
| VLVNA | CM 10081727 |
Literature
Literature coming soon
